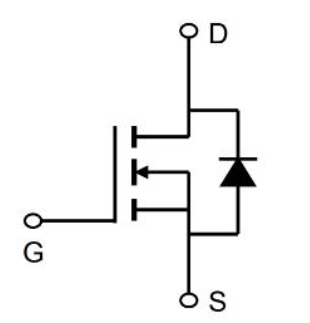

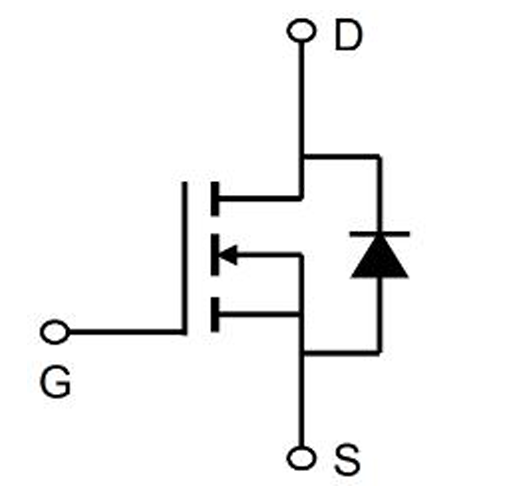

Channel | Type | Datasheet | Circuit | Marking | ID | VDSS | VGSS | VGS(th) | RDS(ON) | Qg | Ciss | Package | ||||
(V) | (V) | (V) | 4.5V(mΩ) | 10V(mΩ) | ||||||||||||
A | Min. | Min. | Min. | Max. | Typ | Max | Typ | Max | nC | pF | ||||||
N | YFW60R075AP | / | / | 47 | 600 | ±30 | 2 | 4 | 68 | 75 | 91.5 | 4285 | TO-247 | |||
N | YFW60R600AF | / | / | 7 | 600 | ±30 | 2 | 4 | 510 | 600 | 13 | 471 | TO-220F | |||
N | YFW60R600AD | / | / | 7 | 600 | ±30 | 2 | 4 | 510 | 600 | 13 | 471 | TO-252 | |||
N | YFW60R600AMJ | / | / | 7 | 600 | ±30 | 2 | 4 | 510 | 600 | 13 | 471 | TO-251 | |||
N | YFW65R1K0AD | / | / | 4 | 650 | ±30 | 2.5 | 4.5 | 800 | 1000 | 9.2 | 295 | TO-252 | |||
N | YFW65R099AF | / | / | 30 | 650 | ±30 | 3 | 4.5 | 99 | 100 | 75 | 3200 | TO-220F | |||
N | YFW65R170AF | / | / | 20 | 650 | ±30 | 2 | 4 | 170 | 190 | 38.5 | 1665 | TO-220F | |||
N | YFW65R190AF | / | / | 20 | 650 | ±30 | 2 | 4 | 150 | 190 | 45 | 1960 | TO-220F | |||
N | YFW65R190AP | / | / | 20 | 650 | ±30 | 2 | 4 | 150 | 190 | 45 | 1960 | TO-247 | |||
N | YFW65R280AD | / | / | 15 | 650 | ±30 | 2.5 | 4.5 | 238 | 280 | 23 | 1720 | TO-252 | |||
N | YFW65R280AF | / | / | 15 | 650 | ±30 | 2.5 | 4.5 | 238 | 280 | 23 | 1720 | TO-220F | |||
N | YFW65R380AD | / | / | 11 | 650 | ±30 | 2 | 4 | 340 | 380 | 20 | 747 | TO-252 |
