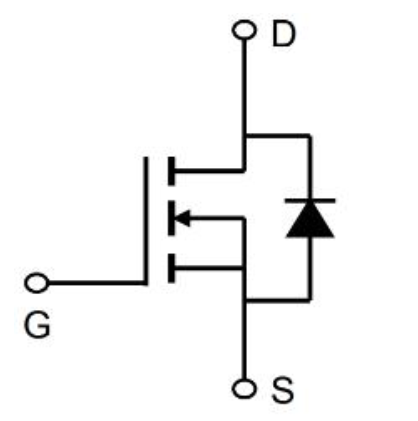

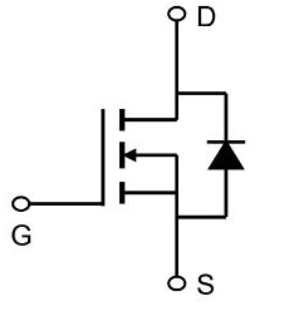

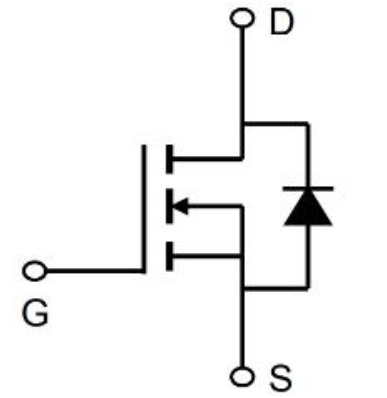

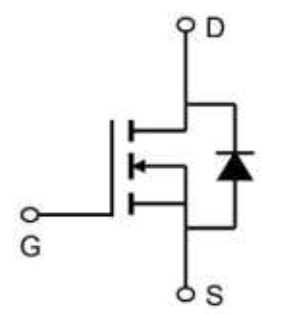

Type	Datasheet	Circuit	Marking	Channel	ID	VDSS	VGSS	VGS(th)		RDS(ON)				Qg	Ciss	Package
					ID	(V)	(V)	(V)		4.5V(mΩ)		10V(mΩ)		Qg	Ciss
					A	Min.	Min.	Min.	Max.	Typ	Max	Typ	Max	nC	pF
重置全部	/	/	/	N Reset	Reset OK	Reset OK	±20 ±30 Reset	Reset OK	Reset OK	Reset OK	Reset OK	Reset OK	Reset OK	Reset OK	Reset OK	SOT23-3L TO-220AB TO-220C TO-247 TO-247S TO-251 TO-252 TO-263 Reset
	/	/	/

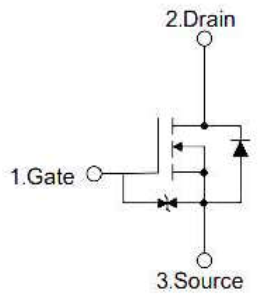

YFW2N30MI			YFW 2N30MI	N	2	300	±20	2	4	/	/	3000	4000	4.4	138	SOT23-3L
YFW3N50AD			YFW 3N50AD	N	3	500	±30	3	4	/	/	2400	3000	8	310	TO-252
YFW2N70AD	/	/	YFW 2N70AD	N	2	700	±30	3	4	/	/	4100	4800	12.5	400	TO-252
YFW5N50AD			YFW 5N50AD	N	5	500	±30	2	4	/	/	1300	1500	13.5	680	TO-252
YFW5N40AD			YFW 5N40AD	N	5	400	±30	2	4	/	/	1000	1200	12	620	TO-252
YFW4N80AD	/	/	YFW 4N80AD	N	4	800	±30	3	4	/	/	3200	3800	21	576	TO-252
YFW4N70AD	/	/	YFW 4N70AD	N	4	700	±30	3	4	/	/	2600	3000	15	580	TO-252
YFW4N65AD			YFW 4N65AD	N	4	650	±30	3	4	/	/	2100	2800	13.5	685	TO-252
YFW4N60AD			YFW 4N60AD	N	4	600	±30	2	4	/	/	2100	2500	12	667	TO-252
YFW3N90AD	/	/	YFW 3N90AD	N	3	900	±30	3	4	/	/	4000	4800	21	576	TO-252
YFW3N80AD	/	/	YFW 3N80AD	N	3	800	±30	3	4	/	/	4000	4800	20	434	TO-252
YFW2N50AD			YFW 2N50AD	N	2	500	±30	3	4	/	/	5400	6500	5	180	TO-252
YFW2N60AD			YFW 2N60AD	N	2	600	±30	2.2	3.2	/	/	3500	4200	8	310	TO-252
YFW2N65AD			YFW 2N65AD	N	2	650	±30	3	4	/	/	3760	4800	8	415	TO-252
YFW5N60AD			YFW 5N60AD	N	5	600	±30	3	4	/	/	1670	2200	12	650	TO-252
YFW5N65AD			YFW 5N65AD	N	5	650	±30	3	4	/	/	2000	2400	15	623	TO-252
YFW5N65BD	/	/	YFW 5N65BD	N	5	650	±30	3	4	/	/	1800	2100	18.5	670	TO-252
YFW5N70AD			YFW 5N70AD	N	5	700	±30	3	4	/	/	1900	2400	19	700	TO-252
YFW6N40AD			YFW 6N40AD	N	6	400	±30	3	4	/	/	860	1000	14	510	TO-252
YFW6N60AD			YFW 6N60AD	N	6	600	±30	3	4	/	/	1400	1700	19	700	TO-252
YFW6N65AD			YFW 6N65AD	N	6	650	±30	3	4	/	/	1650	1900	19	700	TO-252
YFW7N50AD			YFW 7N50AD	N	7	500	±30	3	4	/	/	1000	1200	19	700	TO-252
YFW7N55AD	/	/	YFW 7N55AD	N	7	550	±30	3	4	/	/	1100	1300	19	700	TO-252
YFW7N60AD			YFW 7N60AD	N	7	600	±30	2	4	/	/	980	1300	20	800	TO-252
YFW7N65AD			YFW 7N65AD	N	7	650	±30	2	4	/	/	1060	1400	20	1334	TO-252
YFW9N65AD	/	/	YFW 9N65AD	N	9	650	±30	3	4	/	/	950	1050	38	1710	TO-252
YFW3N90AS			YFW 3N90AS	N	3	900	±30	3	4	/	/	4000	4800	21	576	TO-263
YFW3N120AS	/	/	YFW 3N120AS	N	3	1200	±30	3	4	/	/	4838	5200	22	/	TO-263
YFW4N60AS			YFW 4N60AS	N	4	600	±30	3	4	/	/	2100	2500	/	/	TO-263
YFW4N60BS	/	/	YFW 4N60BS	N	4	600	±30	3	4	/	/	1800	2200	12	667	TO-263
YFW4N65AS			YFW 4N65AS	N	4	650	±30	3	4	/	/	2100	2800	13.5	685	TO-263
YFW4N70AS	/	/	YFW 4N70AS	N	4	700	±30	3	4	/	/	2600	3000	15	580	TO-263
YFW4N80AS	/	/	YFW 4N80AS	N	4	800	±30	3	4	/	/	3200	3800	21	576	TO-263
YFW4N90AS	/	/	YFW 4N90AS	N	4	900	±30	3	4	/	/	3000	3500	28	667	TO-263
YFW5N50AS			YFW 5N50AS	N	5	500	±30	2	4	/	/	1300	1500	13.5	680	TO-263
YFW5N65AS			YFW 5N65AS	N	5	650	±30	3	4	/	/	2000	2400	15	623	TO-263
YFW5N65BS	/	/	YFW 5N65BS	N	5	650	±30	3	4	/	/	1800	2100	18.5	670	TO-263
YFW5N70AS			YFW 5N70AS	N	5	700	±30	3	4	/	/	1900	2400	19	700	TO-263
YFW5N80AS	/	/	YFW 5N80AS	N	5	800	±30	3	4	/	/	2300	2800	28	667	TO-263
YFW6N40AS	/	/	YFW 6N40AS	N	6	400	±30	3	4	/	/	860	1000	14	510	TO-263
YFW6N60AS			YFW 6N60AS	N	6	600	±30	3	4	/	/	1400	1700	19	700	TO-263
YFW6N65AS			YFW 6N65AS	N	6	650	±30	3	4	/	/	1650	1900	19	700	TO-263
YFW6N70AS			YFW 6N70AS	N	6	700	±30	3	4	/	/	1300	1600	22	891	TO-263
YFW6N90AS	/	/	YFW 6N90AS	N	6	900	±30	3	4	/	/	1700	2050	50	1178	TO-263
YFW7N50AS	/	/	YFW 7N50AS	N	7	500	±30	3	4	/	/	1000	1200	19	700	TO-263
YFW7N55AS	/	/	YFW 7N55AS	N	7	550	±30	3	4	/	/	1100	1300	19	700	TO-263
YFW7N60AS			YFW 7N60AS	N	7	600	±30	2	4	/	/	980	1300	/	/	TO-263
YFW7N65AS			YFW 7N65AS	N	7	650	±30	2	4	/	/	1060	1400	/	1334	TO-263
YFW7N70AS			YFW 7N70AS	N	7	700	±30	3	4	/	/	1150	1400	32	1100	TO-263
YFW7N80AS			YFW 7N80AS	N	7	800	±30	3	4	/	/	1350	1600	50	1178	TO-263
YFW8N50AS			YFW 8N50AS	N	8	500	±30	3	4	/	/	630	850	22	1320	TO-263
YFW8N60AS			YFW 8N60AS	N	8	600	±30	3	4	/	/	850	1000	32	1110	TO-263
YFW8N65AS			YFW 8N65AS	N	8	650	±30	3	4	/	/	920	1150	32	1315	TO-263
YFW8N70AS	/	/	YFW 8N70AS	N	8	700	±30	3	4	/	/	950	1100	37	1197	TO-263
YFW9N60AS	/	/	YFW 9N60AS	N	9	600	±30	3	4	/	/	720	850	33	1285	TO-263
YFW9N65AS	/	/	YFW 9N65AS	N	9	650	±30	3	4	/	/	950	1050	38	1710	TO-263
YFW10N40AS	/	/	YFW 10N40AS	N	10	400	±30	3	4	/	/	450	550	22	891	TO-263
YFW10N50AS			YFW 10N50AS	N	10	500	±30	3	4	/	/	560	680	32	1110	TO-263
YFW10N50BS			YFW 10N50BS	N	10	500	±30	2	4	/	/	450	750	/	/	TO-263
YFW10N60AS			YFW 10N60AS	N	10	600	±30	2	4	/	/	660	900	/	1800	TO-263
YFW10N65AS			YFW 10N65AS	N	10	650	±30	2	4	/	/	740	1100	/	1900	TO-263
YFW10N65BS			YFW 10N65BS	N	10	650	±30	3	4	/	/	700	900	35	1692	TO-263
YFW12N40AS	/	/	YFW 12N40AS	N	12	400	±30	3	4	/	/	350	430	32	1110	TO-263
YFW2N50AMJ	/	/	YFW 2N50AMJ	N	2	200	±30	3	4	/	/	5400	6500	5	180	TO-251
YFW2N60AMJ			YFW 2N60AMJ	N	2	600	±30	2.2	3.2	/	/	3500	4200	8	310	TO-251
YFW2N65AMJ			YFW 2N65AMJ	N	2	650	±30	3	4	/	/	3760	4800	8	415	TO-251
YFW2N70AMJ	/	/	YFW 2N70AMJ	N	2	700	±30	3	4	/	/	4100	4800	12.5	400	TO-251
YFW3N50AMJ	/	/	YFW 3N50AMJ	N	3	500	±30	3	4	/	/	2400	3000	8	310	TO-251
YFW3N80AMJ	/	/	YFW 3N80AMJ	N	3	800	±30	3	4	/	/	4000	4800	20	434	TO-251
YFW3N90AMJ	/	/	YFW 3N90AMJ	N	3	900	±30	3	4	/	/	4000	4800	21	576	TO-251
YFW4N60AMJ			YFW 4N60AMJ	N	4	600	±30	2	4	/	/	2100	2500	14	573	TO-251
YFW4N60BMJ	/	/	YFW 4N60BMJ	N	4	600	±30	3	4	/	/	1800	2200	12	667	TO-251
YFW4N65AMJ			YFW 4N65AMJ	N	4	650	±30	2	4	/	/	2100	2800	13.5	685	TO-251
YFW4N70AMJ	/	/	YFW 4N70AMJ	N	4	700	±30	3	4	/	/	2600	3000	15	580	TO-251
YFW4N80AMJ	/	/	YFW 4N80AMJ	N	4	800	±30	3	4	/	/	3200	3800	21	576	TO-251
YFW5N40AMJ			YFW 5N40AMJ	N	5	400	±30	2	4	/	/	1000	1200	12.6	620	TO-251
YFW5N50AMJ			YFW 5N50AMJ	N	5	500	±30	2	4	/	/	1300	1500	13.5	680	TO-251
YFW5N60AMJ			YFW 5N60AMJ	N	5	600	±30	3	4	/	/	1670	2200	12	650	TO-251
YFW5N65AMJ			YFW 5N65AMJ	N	5	650	±30	3	4	/	/	2000	2400	15	623	TO-251
YFW5N65BMJ	/	/	YFW 5N65BMJ	N	5	650	±30	3	4	/	/	1800	2100	18.5	670	TO-251
YFW5N70AMJ			YFW 5N70AMJ	N	5	700	±30	3	4	/	/	2000	2400	19	700	TO-251
YFW6N40AMJ	/	/	YFW 6N40AMJ	N	6	400	±30	3	4	/	/	860	1000	14	510	TO-251
YFW6N60AMJ			YFW 6N60AMJ	N	6	600	±30	3	4	/	/	1400	1700	19	700	TO-251
YFW6N65AMJ			YFW 6N65AMJ	N	6	650	±30	3	4	/	/	1650	1900	19	700	TO-251
YFW7N50AMJ	/	/	YFW 7N50AMJ	N	7	500	±30	2	4	/	/	1000	1200	19	700	TO-251
YFW7N55AMJ	/	/	YFW 7N55AMJ	N	7	550	±30	2	4	/	/	1100	1300	19	700	TO-251
YFW7N60AMJ			YFW 7N60AMJ	N	7	600	±30	3	4	/	/	980	1300	24	1110	TO-251
YFW7N65AMJ			YFW 7N65AMJ	N	7	650	±30	3	4	/	/	1060	1400	33	1334	TO-251
YFW9N65AMJ	/	/	YFW 9N65AMJ	N	9	650	±30	3	4	/	/	950	1050	38	1710	TO-251
YFW3N80AT	/	/	YFW 3N80AT	N	3	800	±30	3	4	/	/	4000	4800	20	434	TO-220AB
YFW3N90AT			YFW 3N90AT	N	3	900	±30	3	4	/	/	4000	4800	21	576	TO-220AB
YFW4N60AT			YFW 4N60AT	N	4	600	±30	2	4	/	/	2100	2500	14	573	TO-220AB
YFW4N60BT	/	/	YFW 4N60BT	N	4	600	±30	2	4	/	/	1800	2200	12	667	TO-220AB
YFW4N65AT			YFW 4N65AT	N	4	650	±30	3	4	/	/	2100	2800	13.5	685	TO-220AB
YFW4N80AT			YFW 4N80AT	N	4	800	±30	3	4	/	/	2600	3000	15	580	TO-220AB
YFW4N90AT	/	/	YFW 4N90AT	N	4	900	±30	3	4	/	/	3200	3800	21	576	TO-220AB
YFW5N50AT			YFW 5N50AT	N	5	500	±30	2	4	/	/	1300	1500	13.5	680	TO-220AB
YFW5N60AT			YFW 5N60AT	N	5	600	±30	3	4	/	/	1670	2200	12	650	TO-220AB
YFW5N65AT			YFW 5N65AT	N	5	650	±30	3	4	/	/	2000	2400	15	623	TO-220AB
YFW5N65B1	/	/	YFW 5N65B1	N	5	650	±30	2	4	/	/	1800	2100	18.5	670	TO-220AB
YFW5N70AT			YFW 5N70AT	N	5	700	±30	2	4	/	/	1900	2400	19	700	TO-220AB
YFW5N80AT	/	/	YFW 5N80AT	N	5	800	±30	3	4	/	/	2300	2800	28	667	TO-220AB
YFW6N40AT	/	/	YFW 6N40AT	N	6	400	±30	3	4	/	/	860	1000	14	510	TO-220AB
YFW6N60AT			YFW 6N60AT	N	6	600	±30	3	4	/	/	1400	1700	19	700	TO-220AB
YFW6N65AT			YFW 6N65AT	N	6	650	±30	3	4	/	/	1650	1900	19	700	TO-220AB
YFW6N70AT			YFW 6N70AT	N	6	700	±30	3	4	/	/	1300	1600	22	891	TO-220AB
YFW6N90AT	/	/	YFW 6N90AT	N	6	900	±30	3	4	/	/	1700	2050	50	1178	TO-220AB
YFW7N50AT	/	/	YFW 7N50AT	N	7	500	±30	3	4	/	/	1000	1200	19	700	TO-220AB
YFW7N55AT	/	/	YFW 7N55AT	N	7	550	±30	3	4	/	/	1100	1300	19	700	TO-220AB
YFW7N60AT			YFW 7N60AT	N	7	600	±30	2	4	/	/	980	1300	24	1110	TO-220AB
YFW7N65AT			YFW 7N65AT	N	7	650	±30	2	4	/	/	1060	1400	33	1334	TO-220AB
YFW7N70AT			YFW 7N70AT	N	7	700	±30	3	4	/	/	1150	1400	32	1110	TO-220AB
YFW7N80AT			YFW 7N80AT	N	7	800	±30	3	4	/	/	1350	1600	50	1178	TO-220AB
YFW8N50AT			YFW 8N50AT	N	8	500	±30	3	4	/	/	630	850	22	1320	TO-220AB
YFW8N60AT			YFW 8N60AT	N	8	600	±30	3	4	/	/	850	1000	32	1110	TO-220AB
YFW8N65AT			YFW 8N65AT	N	8	650	±30	3	4	/	/	920	1150	32	1315	TO-220AB
YFW8N70AT	/	/	YFW 8N70AT	N	8	700	±30	3	4	/	/	950	1100	37	1197	TO-220AB
YFW9N60AT	/	/	YFW 9N60AT	N	9	600	±30	3	4	/	/	720	850	33	1285	TO-220AB
YFW9N65AT	/	/	YFW 9N65AT	N	9	650	±30	3	4	/	/	950	1050	38	1710	TO-220AB
YFW10N40AT	/	/	YFW 10N40AT	N	10	400	±30	3	4	/	/	450	550	22	891	TO-220AB
YFW12N40AT	/	/	YFW 12N40AT	N	12	400	±30	3	4	/	/	350	430	32	1110	TO-220AB
YFW10N50AC	/	/	YFW 10N50AC	N	10	500	±30	3	4	/	/	560	680	32	1100	TO-220C
YFW10N50BC			YFW 10N50BC	N	10	500	±30	3	4	/	/	450	750	32	1620	TO-220C
YFW10N60AC			YFW 10N60AC	N	10	600	±30	3	4	/	/	700	900	32	1609	TO-220C
YFW10N60BC			YFW 10N60BC	N	10	600	±30	3	4	/	/	600	720	35	1264	TO-220C
YFW10N65AC	/	/	YFW 10N65AC	N	10	650	±30	3	4	/	/	740	1100	21.5	1900	TO-220C
YFW10N65BC			YFW 10N65BC	N	10	650	±30	3	4	/	/	700	900	35	1692	TO-220C
YFW12N50AC	/	/	YFW 12N50AC	N	12	500	±30	3	4	/	/	430	530	35	1181	TO-220C
YFW12N60AC			YFW 12N60AC	N	12	600	±30	3	4	/	/	500	620	44	1540	TO-220C
YFW12N65AC	/	/	YFW 12N65AC	N	12	650	±30	3	4	/	/	560	800	50	2378	TO-220C
YFW13N40AC	/	/	YFW 13N40AC	N	13	400	±30	3	4	/	/	320	370	35	1181	TO-220C
YFW13N50AC			YFW 13N50AC	N	13	500	±30	3	4	/	/	350	500	40	1560	TO-220C
YFW15N50AC	/	/	YFW 15N50AC	N	15	500	±30	3	4	/	/	350	420	44	1398	TO-220C
YFW10N80AP			YFW 10N80AP	N	10	800	±30	2	4	/	/	740	1000	83	1979	TO-247
YFW11N90AP	/	/	YFW 11N90AP	N	11	900	±30	3	4	/	/	750	960	/	/	TO-247
YFW12N50AP	/	/	YFW 12N50AP	N	12	500	±30	3	4	/	/	430	530	35	1181	TO-247
YFW15N50AP	/	/	YFW 15N50AP	N	15	500	±30	3	4	/	/	350	420	44	1398	TO-247
YFW16N50AP			YFW 16N50AP	N	16	500	±30	3	4	/	/	300	400	48	2400	TO-247
YFW16N60AP			YFW 16N60AP	N	16	600	±30	3	4	/	/	400	480	71	2250	TO-247
YFW16N65AP			YFW 16N65AP	N	16	650	±30	3	4	/	/	450	550	71	2250	TO-247
YFW18N50AP			YFW 18N50AP	N	18	500	±30	3	4	/	/	250	340	71	3100	TO-247
YFW20N50AP			YFW 20N50AP	N	20	500	±30	2	4	/	/	210	300	52	2919	TO-247
YFW20N60AP			YFW 20N60AP	N	20	600	±30	2	4	/	/	330	450	61	2881	TO-247
YFW20N65AP			YFW 20N65AP	N	20	650	±30	2	4	/	/	350	500	65	2567	TO-247
YFW25N50AP			YFW 25N50AP	N	25	500	±30	3	4	/	/	210	260	80	3039	TO-247
YFW25N60AP	/		YFW 25N60AP	N	25	600	±30	3	4	/	/	220	270	121.4	4610	TO-247
YFW25N65AP			YFW 25N65AP	N	25	650	±30	3	4	/	/	250	300	121.4	4610	TO-247
YFW28N50AP			YFW 28N50AP	N	28	500	±30	3	4	/	/	140	180	121.4	4610	TO-247
YFW35N60AP			YFW 35N60AP	N	35	600	±30	3	5	/	/	130	150	196	7453	TO-247
YFW35N65AP	/		YFW 35N65AP	N	35	650	±30	3	5	/	/	140	170	196	7453	TO-247
YFW45N50AP			YFW 45N50AP	N	45	500	±30	3	5	/	/	80	100	196	7453	TO-247
YFW10N80APS			YFW10N80APS	N	10	800	±30	3	4	/	/	740	1000	83	1979	TO-247S
YFW11N90APS	/		YFW 11N90APS	N	11	900	±30	3	4	/	/	750	960	/	/	TO-247S
YFW12N50APS	/		YFW 12N50APS	N	12	500	±30	3	4	/	/	430	530	35	1181	TO-247S
YFW15N50APS	/		YFW 15N50APS	N	15	500	±30	3	4	/	/	350	420	44	1398	TO-247S
YFW16N50APS			YFW 16N50APS	N	16	500	±30	3	4	/	/	300	400	48	2400	TO-247S
YFW16N60APS			YFW 16N60APS	N	16	600	±30	3	4	/	/	400	480	71	2250	TO-247S
YFW16N65APS			YFW 16N65APS	N	16	650	±30	3	4	/	/	450	550	71	2250	TO-247S
YFW18N50APS			YFW 18N50APS	N	18	500	±30	3	4	/	/	250	340	71	3100	TO-247S
YFW20N50APS			YFW 20N50APS	N	20	500	±30	2	4	/	/	210	300	52	2919	TO-247S
YFW20N60APS	/		YFW 20N60APS	N	20	600	±30	2	4	/	/	330	450	61	2881	TO-247S
YFW20N65APS			YFW 20N65APS	N	20	650	±30	2	4	/	/	350	500	65	2567	TO-247S
YFW25N50APS			YFW 25N50APS	N	25	500	±30	3	4	/	/	210	260	80	3039	TO-247S
YFW25N60APS	/		YFW 25N60APS	N	25	600	±30	3	4	/	/	220	270	121.4	4610	TO-247S
YFW25N65APS	/		YFW 25N65APS	N	25	650	±30	3	4	/	/	250	300	121.4	4610	TO-247S
YFW28N50APS			YFW 28N50APS	N	28	500	±30	3	4	/	/	140	180	121.4	4610	TO-247S
YFW35N60APS			YFW 35N60APS	N	35	600	±30	3	5	/	/	130	150	196	7453	TO-247S
YFW35N65APS	/		YFW 35N65APS	N	35	650	±30	3	5	/	/	140	170	196	7453	TO-247S
YFW45N50APS			YFW 45N50APS	N	45	500	±30	3	5	/	/	80	100	196	7453	TO-247S
